Category: SKU: UN01

LED Recessed Floor Light 3W~30W Walkover IP67 Inground Uplighter UN01

CIKI support for OEM/ODM. Ideal for outdoor landscape lighting, our customers like to use it for paths, steps, decks, building exterior walls, landing advertisements and other outdoor areas that need upward lighting.

The warm white light with a color temperature of 3000K significantly enhanced the effect of outdoor lighting.

Power

, , , , , , , , ,

Material

IP Rating

Input Voltage

AC220-240V, AC DC 12V-24V
Lamp Type

Color Temperature

, ,

MOQ

50-200Pcs
Delivery time

15-35 days
Free sample

Yes
In stock

No
Business Type

Factory / Manufacturer / Wholesaler
Manufacturer

CIKI Optoelectronics Technology Co., Ltd.
Certificate

CE Rohs
Contact

Ground recessed concrete and driveway lights_UN01_2

Ground recessed concrete and driveway lights_SMD_UN01_1

Recessed Ground Floor Lighting cikiled.com

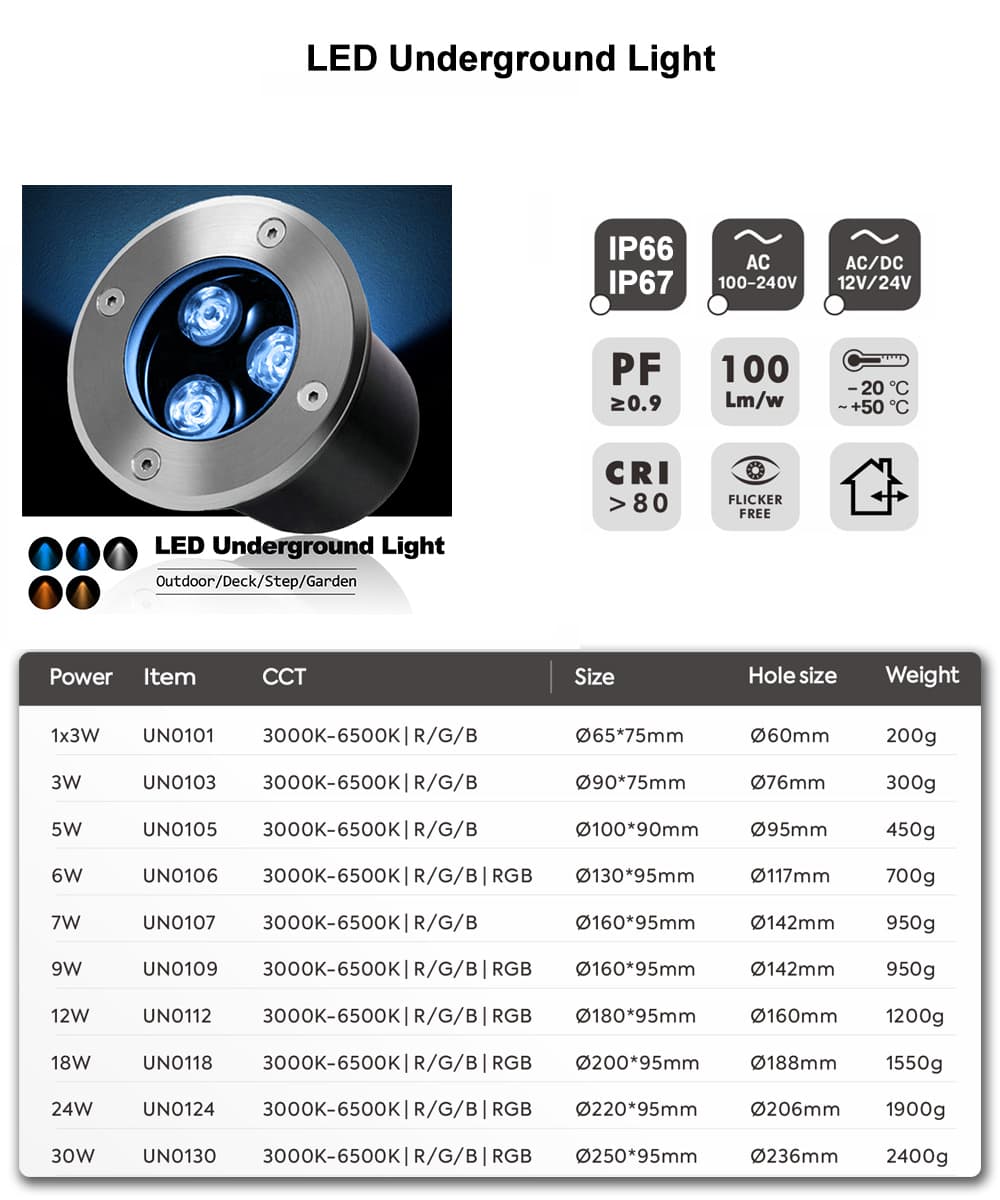

Product specification

Power Item-N CCT Size Hole size Weight
1x3W UN0101 3000K-6500K | R/G/B Ø65*75mm Ø60mm 200g
3W UN0103 3000K-6500K | R/G/B Ø90*75mm Ø76mm 300g
5W UN0105 3000K-6500K | R/G/B Ø100*90mm Ø95mm 450g
6W UN0106 3000K-6500K | R/G/B | RGB Ø130*95mm Ø117mm 700g
7W UN0107 3000K-6500K | R/G/B Ø160*95mm Ø142mm 950g
9W UN0109 3000K-6500K | R/G/B | RGB Ø160*95mm Ø142mm 950g
12W UN0112 3000K-6500K | R/G/B | RGB Ø180*95mm Ø160mm 1200g
18W UN0118 3000K-6500K | R/G/B | RGB Ø200*95mm Ø188mm 1550g
24W UN0124 3000K-6500K | R/G/B | RGB Ø220*95mm Ø206mm 1900g
30W UN0130 3000K-6500K | R/G/B | RGB Ø250*95mm Ø236mm 2400g

Factory customizable specification

Certification: CE / ROHS / TÜV / FCC / BSCI
Warranty Period: 3Years / 5Years
IP Rating: IP66 / IP67
Beam Angle (optics): 15° / 30° / 45° / 60°  ( Factory default: 45° )
Life: 30000H / 50000H
Dimming Controller: DALI / Triac / 1-10V / DMX512 (Factory default: No dimming)
LED Chip: EPISTAR / OSRAM / CREE / Bridgelux
Driver: MEAN WELL / KEGU / LIFUD / DONE
Voltage: AC100-240V | AC/DC12-24V
Packing customizable: Color box / white box / brown box / + User Manual + Carton
Other customizable: Custom power / Laser engraving service

Materials and performance parameter

Luminous Efficacy: 100Lm/w
PF: ≥0.9
CRI: >80
IK Rating: IK08
Resisting Surge: 2000V
Vertical load bearing: 500KG
Flicker: Flicker Free
Type: SMD
Reflector: Selectable angle optics: 15° / 30° / 45° / 60°
Glass: 8 mm Tempered glass
Cover: 201 stainless steel  (Round)
Body: Die-cast aluminum
Case: Plastic case
Cable: L300mm H05RN-F 2 x 1.0 mm²  (Low Voltage) ROHS+VDE L300mm H05RN-F 3 x 1.0 mm²  (High Voltage) ROHS+VDE
Working Environment: – 20 ℃ / +50 ℃   20%-80% humidity
Storage Environment: – 20 ℃ / +85 ℃   10%-90% humidity
