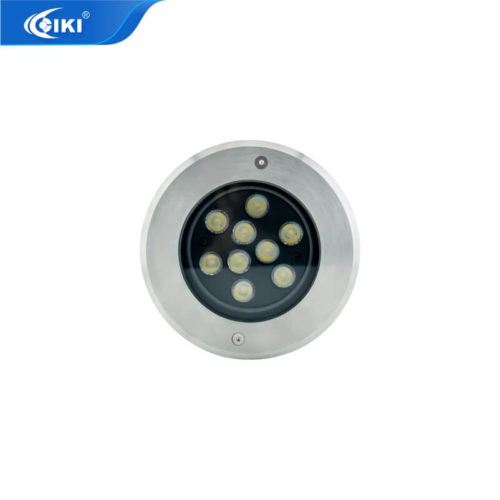

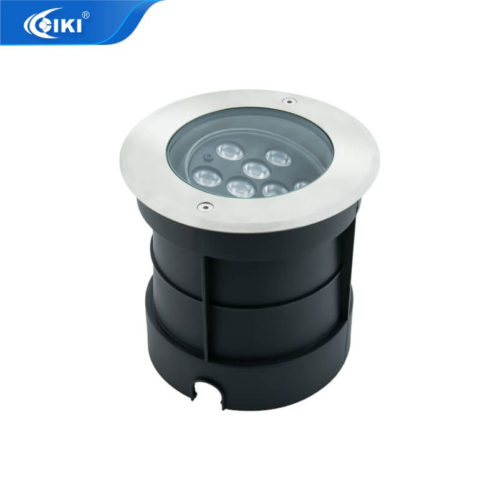

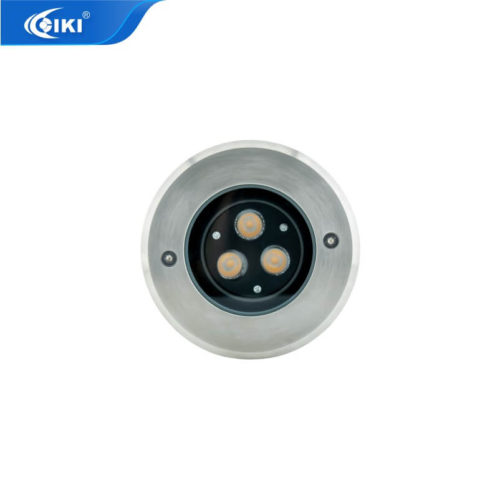

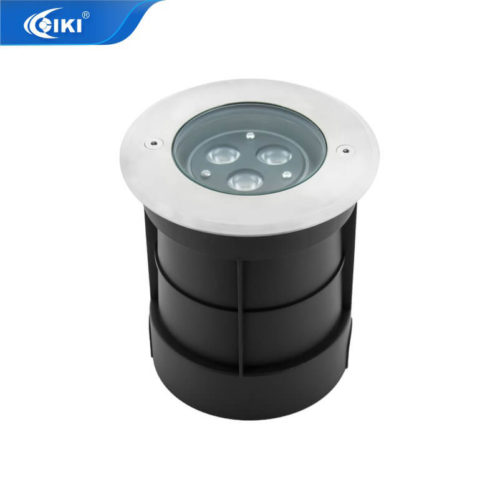

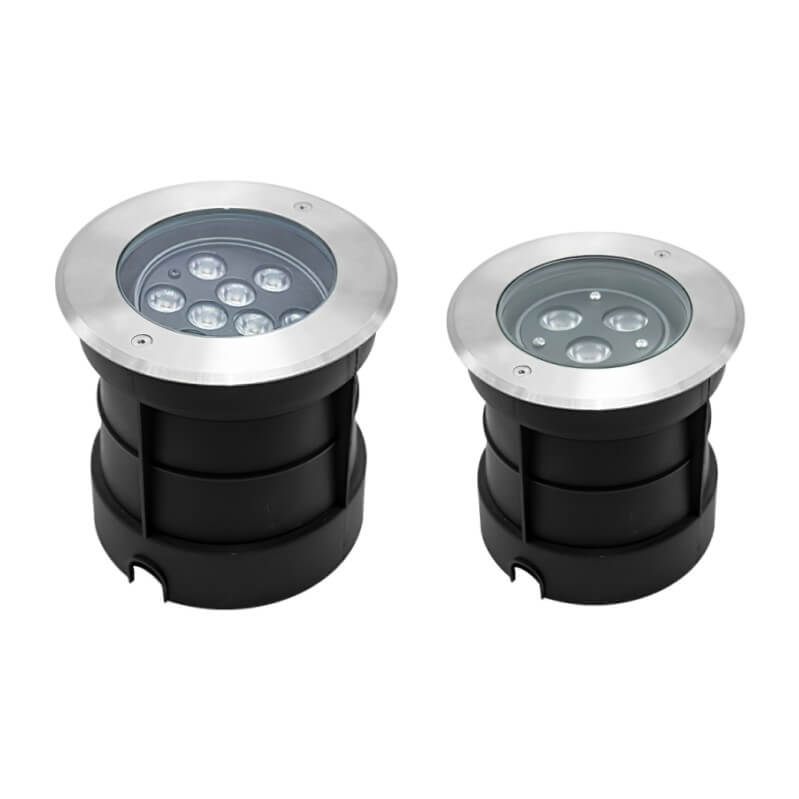

Exterior Inground Uplighter 3w 9w IP67 stainless-steel Recessed Walkover Adjustable UN13

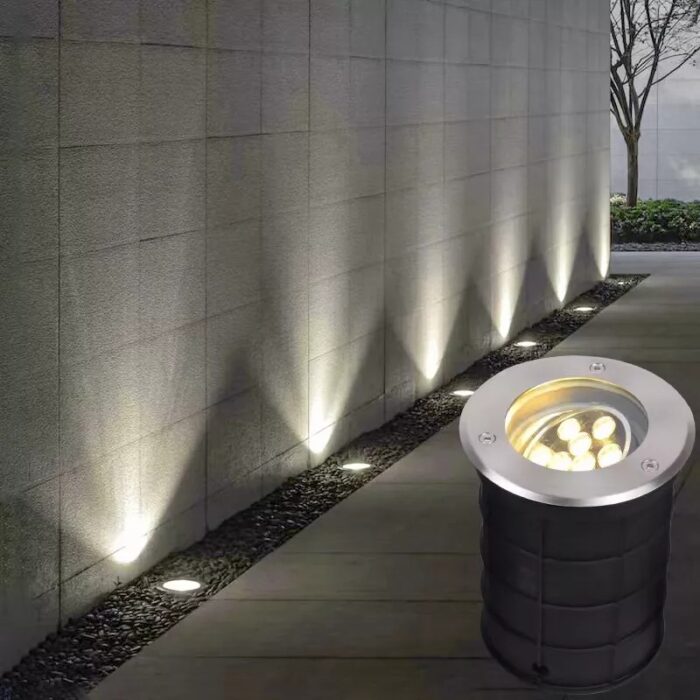

Applicable outdoor ground recessed lighting, driveway lighting.
| Power | |
|---|---|
| Material | |
| IP Rating | |
| Input Voltage | AC220-240V, AC DC 12V-24V |
| Lamp Type | |
| Color Temperature | |
| MOQ | 50-200Pcs |
| Delivery time | 15-35 days |
| Free sample | Yes |
| In stock | No |
| Business Type | Factory / Manufacturer / Wholesaler |
| Manufacturer | CIKI Optoelectronics Technology Co., Ltd. |
| Certificate | CE Rohs |
Product specification

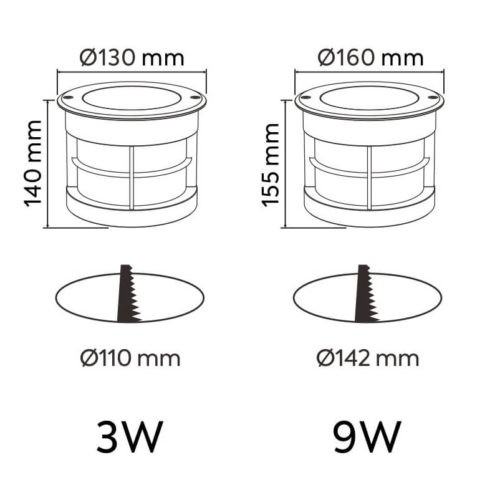

| Power | Item-N | CCT | Size | Hole size | Weight |
| 3W | UN1303 | 3000K-6500K | Ø130*140mm | Ø110mm | 1100g |
| 9W | UN1309 | 3000K-6500K | Ø160*155mm | Ø142mm | 1700g |
Factory customizable specification
| Certification: | CE / ROHS / TÜV / FCC / BSCI |
| Warranty Period: | 3Years / 5Years |
| IP Rating: | IP66 / IP67 |
| Beam Angle (optics): | 15° / 30° / 45° / 60° ( Factory default: 45° ) |
| Life: | 30000H / 50000H |
| Dimming Controller: | DALI / Triac / 1-10V / DMX512 (Factory default: No dimming) |
| LED Chip: | EPISTAR / OSRAM / CREE / Bridgelux |
| Driver: | MEAN WELL / KEGU / LIFUD / DONE |
| Voltage: | AC100-240V | AC/DC12-24V |
| Packing customizable: | Color box / white box / brown box / + User Manual + Carton |
| Other customizable: | Custom power / Laser engraving service |
Materials and performance parameter
| Luminous Efficacy: | 100Lm/w |
| PF: | ≥0.9 |
| CRI: | >80 |
| IK Rating: | IK08 |
| Resisting Surge: | 2000V |
| Vertical load bearing: | 500KG |
| Flicker: | Flicker Free |
| Type: | SMD |
| Reflector: | Selectable angle optics: 15° / 30° / 45° / 60° |
| Glass: | 8 mm Tempered glass |
| Cover: | 201 stainless steel (Round) |
| Body: | Die-cast aluminum |
| Case: | Plastic case |
| Cable: | L300mm H05RN-F 2 x 1.0 mm² (Low Voltage) ROHS+VDE L300mm H05RN-F 3 x 1.0 mm² (High Voltage) ROHS+VDE |
| Working Environment: | – 20 ℃ / +50 ℃ 20%-80% humidity |
| Storage Environment: | – 20 ℃ / +85 ℃ 10%-90% humidity |
